📊 Entity-Relationship Diagram Documentation

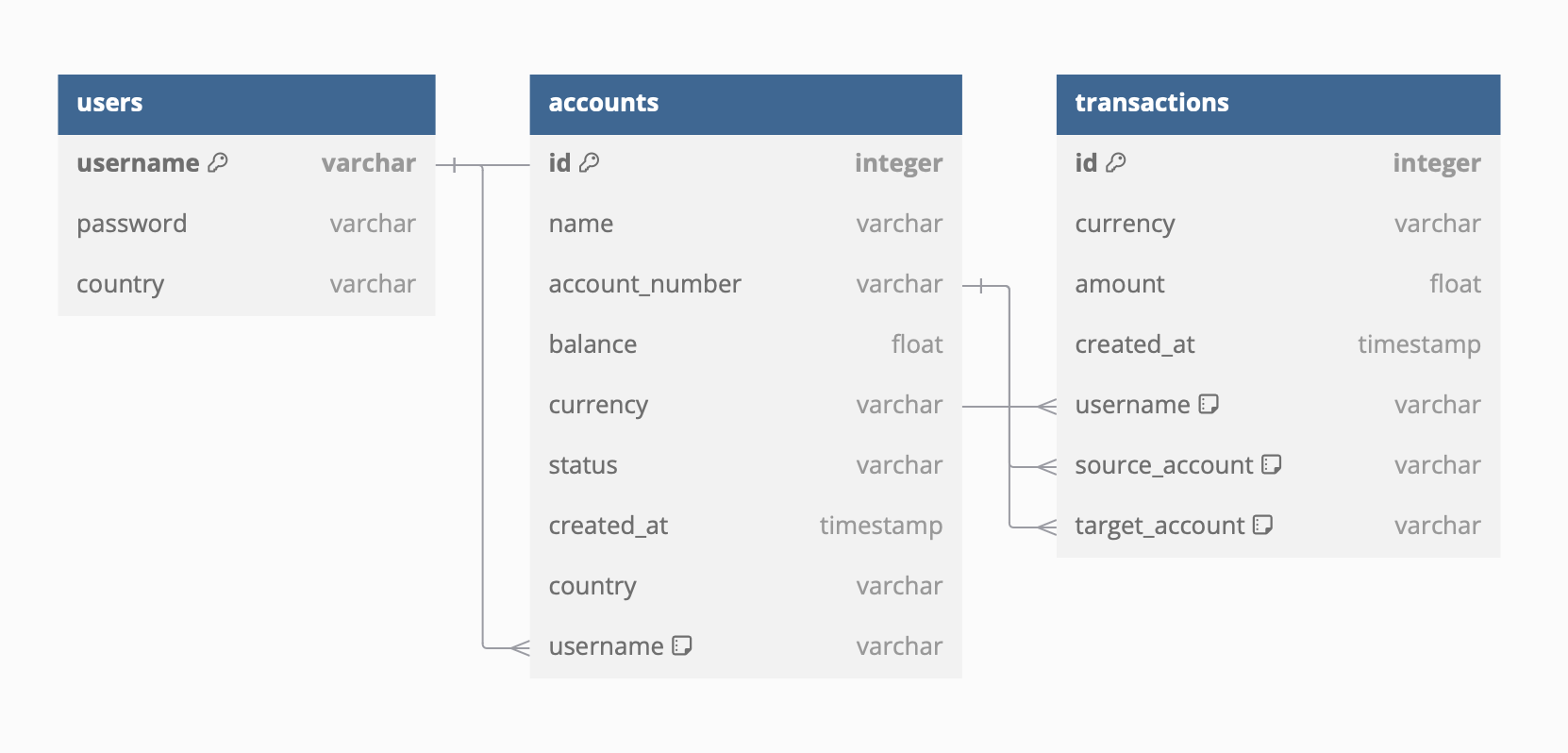

Overview of the ER Diagram

This ER diagram models a relational database for a system that manages Users, their Accounts, and the Transactions they perform. It is designed to facilitate robust user account management, multi-currency support, and detailed transaction tracking. The relationships between entities ensure consistency and provide a clear structure for data retrieval and manipulation.

---

Detailed Explanation of Entities and Attributes

1. Users 👤

• Attributes:
  • username (Primary Key): A unique identifier for each user. This key establishes a direct connection between the user and their accounts, as each account is linked to a specific username.
  • password: Stores the password for secure user authentication.
  • country: Indicates the user’s country of residence, set by fault to Spain.
• Context and Relationships:
  • Each user can own multiple accounts. This is represented through the username attribute in the Accounts table, which acts as a foreign key referencing the username in Users.
  • The connection between users and accounts allows the system to manage personalized account details, making it easy to query all accounts associated with a particular user.

---

2. Accounts 💳

• Attributes:
  • id (Primary Key): A unique identifier for each account. This ensures every account is distinctly identifiable.
  • name: The user-defined name of the account (e.g., “Savings Account” or “Business Account”).
  • account_number: A unique number used for transactions and external references.
  • balance: The current monetary value in the account. This attribute tracks the user’s funds and is frequently updated during transactions.
  • currency: Specifies the currency type (e.g., USD, EUR) associated with the account, allowing support for multi-currency systems.
  • status: Represents whether the account is active, or not.
  • created_at: Records the timestamp when the account was created, useful for auditing and history tracking.
  • country: Indicates the account’s country.
  • username (Foreign Key): Links each account to a specific user by referencing the username attribute in the Users table.
• Context and Relationships:
  • An account belongs to one user, as enforced by the username foreign key. This ensures that all accounts are tied to a specific user in the Users table.
  • Each account can participate in multiple transactions, either as the source_account or target_account. This is managed through foreign key references in the Transactions table, where each transaction can identify the accounts involved.

---

3. Transactions 💸

• Attributes:
  • id (Primary Key): A unique identifier for each transaction. This is critical for tracking and auditing purposes.
  • currency: The currency type used in the transaction, which must match the account’s currency.
  • amount: The monetary value of the transaction.
  • created_at: A timestamp indicating when the transaction occurred.
  • username (Foreign Key): Identifies the user who initiated the transaction by referencing the username in the Users table.
  • source_account (Foreign Key): Refers to the account from which the funds were withdrawn. This attribute links back to the account_number in the Accounts table.
  • target_account (Foreign Key): Refers to the destination account where the funds were deposited, also linking back to the account_number in the Accounts table.
• Context and Relationships:
  • Each transaction is initiated by a single user, represented by the username foreign key. This allows the system to trace transaction origins back to the user level.
  • Transactions involve two accounts: the source_account and the target_account. Both attributes reference the account_number in the Accounts table, ensuring that the involved accounts are valid and exist in the system.
  • By linking transactions to both users and accounts, the system can produce detailed reports on user activity, account balances, and transaction histories.

---

Summary 📝

This database design ensures a robust connection between users, accounts, and transactions:

1. Users manage multiple accounts: Each account is uniquely linked to one user, but a single user can have many accounts, facilitating multi-account management.
2. Accounts participate in transactions: Every transaction must involve two accounts—one as the source and one as the target. Transactions are also tied to the user who initiated them, ensuring accountability.
3. Scalable and relational structure: The use of primary and foreign keys ensures strong referential integrity, making the database scalable and secure for future features such as transaction categorization, advanced reporting, or multi-user permissions.

---
